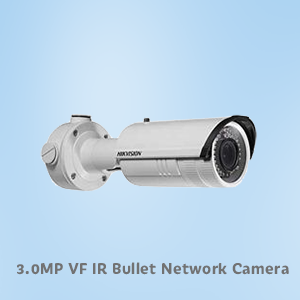

• Up to 3 megapixel (2048 x 1536) resolution• Full HD1080p real-time video• Vari-focal lens• IR LEDs (up to 30m)• DWDR & 3D DNR & BLC• IP66• Support onboard storage (up to 64GB)• (-S) Audio I/O, Alarm I/O
Related Products
-
DS-2CC11A2P-IRA
Camera Image Sensor: | 1/3” SONY CCD Signal System: | PAL Effective Pixels: | PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)Min. Illumination: | 0.001 lux@F1.2, AGC on, 0 lux with IR
0.0014 lux@F1.4, AGC on, 0 lux with IRShutter Time: | 1/50s to 1/100,000s Lens: | 25mm @F1.4 (16mm optional)
Angle of view: 13.5° (25mm)Lens Mount: | CS mount Day& Night: | Electronic Horizontal Resolution: | 700 TVL Synchronization: | Internal Synchronization Video Output: | 1Vp-p Composite Output (75Ω/BNC) S/N Ratio: | More than 62 dB BLC: | On General Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 90% or less (non-condensing)Power Supply: | 24 V AC ± 10% Power Consumption: | Max. 15 W Weather Proof: | IP66 IR Range: | Approx 100 to 110 meters Dimension: | 116.8 × 97.3 × 255.1mm (4.60” × 3.83” × 10.04”) Weight: | 2500g (5.50 lbs) -
DS-2CC51A7P(N)-VPIR(H)
Camera Image Sensor: | 1/3” SONY CCD Signal System: | PAL/NTSC Effective Pixels: | PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)Min. Illumination: | 0.001 Lux @ (F1.2, AGC ON), 0.0001 Lux @ (F1.2, AGC ON, sensitivity × 512), 0 Lux with IR
0.0014 Lux @ (F1.4, AGC ON), 0.00014 Lux @ (F1.4, AGC ON, sensitivity × 512), 0 Lux with IRShutter Time: | 1/50(1/60)s to 1/100,000s Lens: | 2.8 – 12 mm @ F1.4
Angle of view: 80° – 27.2°Lens Mount: | φ14 Auto Iris: | DC Drive Adjustment Range: | Pan: 0 – 355°, Tilt: 0 -80°, Rotation: ± 90° Day& Night: | IR cut filter with auto switch Horizontal Resolution: | 700 TVL Wide Dynamic Range: | 75dB Synchronization: | Internal/Power synchronization Video Output: | 1Vp-p Composite Output (75Ω/BNC);
Test Monitor OUT [1Vp-p Composite Output (75Ω/BNC),Device Line]S/N Ratio: | More than 62 dB Menu Camera ID: | On/Off(16 letters, position adjustable) Auto Gain: | Low/Middle/High/Off D/N Mode: | Auto/Day/Night Auto White Balance: | Auto trace WB1/Auto trace WB2/Manual/Auto Control Private Mask: | On / off, maximum 12 zones Motion Detection: | ON/Off BLC: | Area/Value/Off WDR: | Value/ Contrast / Return Anti-flicker: | On/ Off Language: | English/Chinese Video Parameters: | SMART IR, Eclipse, Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Electronic image stabilization, Digital Zoom, Mirror, Defect Pixel Correction Scene: | Indoor standard, Indoor backlight, outdoor, low illumination, IR standard, customize General Operating Conditions: | -10 °C – 60 °C (14 °F – 140 °F)
Humidity 90% or less (non-condensing)
-H: -40 °C – 60 °C (-40 °F – 140 °F) with heater and fan onPower Supply: | 24 VAC ± 10%, 12 VDC ± 10% (-H: 24 VAC ± 10%) Power Consumption: | Max. 13 W
-H: Max. 25 WImpact Protection: | IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. Weather Proof: | IP66 Heater: | -H: support IR Range: | -IR: approx 20 to 30 meters Dimension: | Φ 145.3 × 124.2 mm (Φ 5.72”× 4.89”) Weight: | 2000 g(4.40 lbs) -
DS-2CC52C2S-IT3P
Camera Image Sensor: | 1/3″ Progressive Scan CMOS Signal System: | PAL/NTSC Effective Pixels: | 1280(H)*720(V) Min. Illumination: | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR Shutter Time: | 1/100 s to 1/100,000 s Lens: | 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
Angle of View: 78.8°(3.6mm), 103°(2.8mm), 51.2°(6mm), 37.6°(8mm), 24.6°(12mm), 18.8°(16mm)Lens Mount: | M12 Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360° Day& Night: | IR cut filter with auto switch Video Frame Rate: | 720p@25fps/720p@30fps HD Video Output: | SMPTE292M (HD-SDI) Synchronization: | Internal Synchronization General Operating Conditions: | -10 °C – 60 °C (14 °F – 140 °F)
Humidity 90% or less (non-condensing)Power Supply: | 12 V DC±10% Power Consumption: | Max. 6W Weather Proof: | IP66 IR Range: | Up to 40m Dimension: | Φ114.6 × 89.1mm(Φ4.5” × 3.5”) Weight: | 250 g (0.55lb) -
DS-2CC11A7P(N)-A(-C)
Camera Image Sensor: | 1/3″ SONY Super HAD CCD II Signal System: | PAL/NTSC Effective Pixels: | PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)Min. Illumination: | Color: 0.001 Lux @ (F1.2, AGC ON),
0.0001 Lux @ (F1.2, AGC ON, sensitivity × 512)
B/W: 0.0001 Lux @ (F1.2, AGC ON),
0.00001 Lux @ (F1.2, AGC ON, sensitivity × 512)Shutter Time: | 1/50(1/60)s to 1/100,000s Lens Mount: | C/CS Mount Auto Iris: | DC/Video Drive Day& Night: | IR cut filter with auto switch Wide Dynamic Range: | 75dB Synchronization: | Internal/Power synchronization Video Output: | 1Vp-p Composite Output (75Ω/BNC) S/N Ratio: | More than 62 dB Menu Camera ID: | On / off (16 letters, adjusted position) Auto Gain: | Low/Middle/High/Off D/N Mode: | Auto1/Auto2/Day/Night Auto White Balance: | Auto trace WB1/Auto trace WB2/Manual/Auto Control Private Mask: | On / off, maximum 12 zones Motion Detection: | Mode1/Mode2/Off BLC: | Area/Value/Off Eclipse: | On / off WDR: | Value/Contrast/WD exposure compensation/Return Anti-flicker: | On/ Off Language: | English/Chinese Scene: | Indoor standard, Indoor backlight, outdoor, low illumination, IR standard, customize Function: | SMART IR, Eclipse, Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Electronic image stabilization, Digital Zoom, Mirror, Defect Pixel Correction, auto-iris correction General Operating Conditions: | -10 °C – 60 °C (14 °F – 140 °F)
Humidity 90% or less (non-condensing)Power Supply: | 24 V AC ± 10%, 12 V DC ± 10%
(-C series support 100 – 240 V AC)Power Consumption: | Max. 5 W(Max. 10 W with IR cut filter on) Dimension: | 69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”) Weight: | 400 g (0.88 lbs)
