• Optional 820 ft (250 m) Extended Transmission Mode
• 8 x 10/100 Mbps Auto-MDIX Ports
• IEEE 802.3at/af PoE Compliant
• Up to 30 Watts per PoE Port, PoE Power Budget 123 W
• 4 kV Surge Protection
• IEEE 802.3x Flow Control Support
• Plug-and-Play Installation
• 1.8 Gbps Switching Fabric
• 1.25 Mbits RAM Data Buffer
• 4K MAC Address Entries
• Sturdy Metal Enclosure

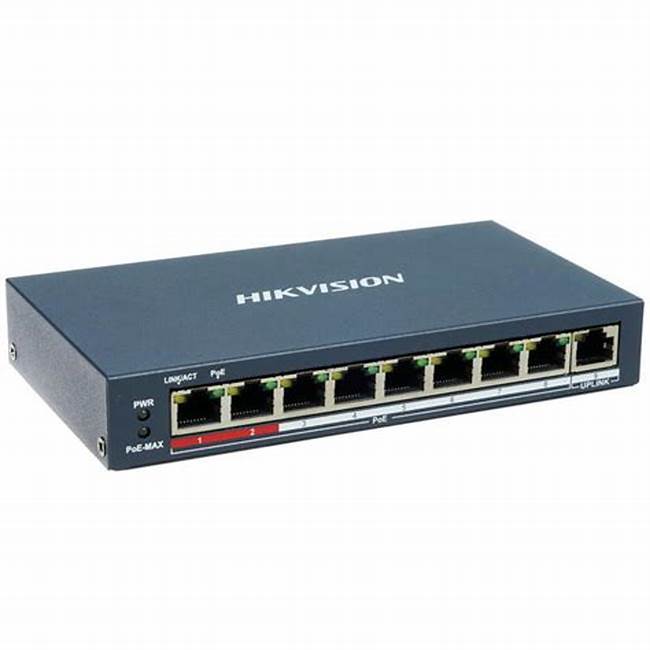

8-Port 100 Mbps Unmanaged PoE Switch
DS-3E0109P-E is a 10/100 Mbps unmanaged
switch that requires no configuration and
provides eight PoE (Power over Ethernet) ports.
It can automatically detect and supply power to
all IEEE 802.3af/at compliant powered devices.
In these situations, electrical power is
transmitted alongside data in one single cable,
allowing network expansion where there are no
power lines or outlets, for devices such as IP
cameras, IP phones, etc.
